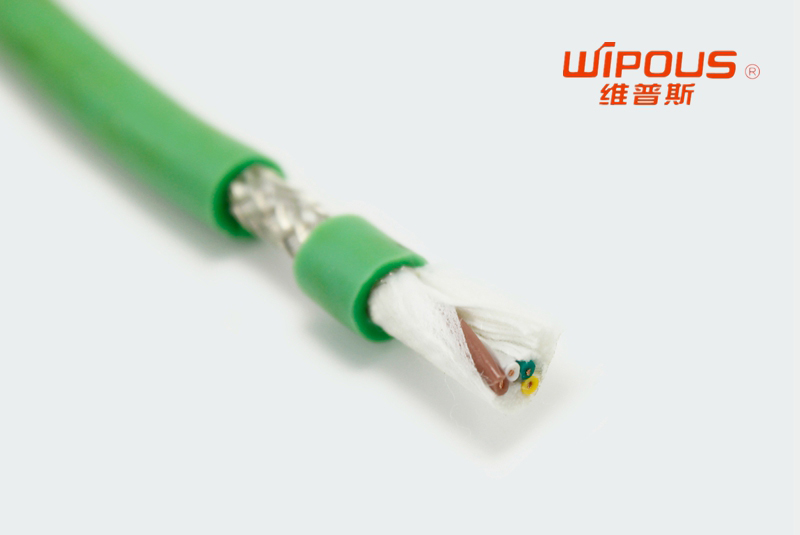

超細銅絲導體
柔性PVC絕緣
進口柔性PUR護套
鍍錫銅絲編織屏蔽
產品應用：
喬浦HPKMCE-S屏蔽PUR控制電纜用于工業自動化，機電成套設備，機床等機械設備，物流傳輸系統，生產線等控制系統中電氣連接，特別適合用于工業環境中，干燥或者潮濕的室內室外固定安裝，也可用于非連續往復運動無強制牽引的移動安裝。PUR外護套使此款電纜適用于極其苛刻的工業環境和有腐蝕性冷卻劑和潤滑油場合，具有極好的耐油性，抗磨損性，抗微生物，抗水解，抗化學腐蝕，抗紫外線保護電纜不受機械應力的損害。鍍錫銅編織屏蔽使線纜具有較強的抗外界電磁干擾能力，保證電纜系統的穩定性。
| 型號 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| HPKMCE-S-0.5-2C | 2*0.5 | 6.5 | 57.7 |
| HPKMCE-S-0.5-3C | 3*0.5 | 6.9 | 70.1 |
| HPKMCE-S-0.5-4C | 4*0.5 | 7.5 | 85.0 |
| HPKMCE-S-0.5-5C | 5*0.5 | 8.2 | 100.8 |
| HPKMCE-S-0.5-6C | 6*0.5 | 9.0 | 117.2 |
| HPKMCE-S-0.5-7C | 7*0.5 | 9.0 | 126.2 |
| HPKMCE-S-0.5-8C | 8*0.5 | 9.7 | 143.0 |
| HPKMCE-S-0.5-9C | 9*0.5 | 10.7 | 162.8 |
| HPKMCE-S-0.5-10C | 10*0.5 | 11.4 | 180.4 |
| HPKMCE-S-0.5-12C | 12*0.5 | 11.8 | 202.9 |
| HPKMCE-S-0.5-14C | 14*0.5 | 12.5 | 228.7 |
| HPKMCE-S-0.5-16C | 16*0.5 | 13.2 | 255.6 |
| HPKMCE-S-0.5-18C | 18*0.5 | 13.9 | 283.2 |
| HPKMCE-S-0.5-20C | 20*0.5 | 14.3 | 306.3 |
| HPKMCE-S-0.5-21C | 21*0.5 | 14.6 | 320.2 |
| HPKMCE-S-0.5-24C | 24*0.5 | 16.3 | 371.7 |
| HPKMCE-S-0.5-25C | 25*0.5 | 16.7 | 386.3 |
| HPKMCE-S-0.5-27C | 27*0.5 | 16.7 | 404.3 |
| HPKMCE-S-0.5-30C | 30*0.5 | 17.4 | 441.1 |
| HPKMCE-S-0.5-32C | 32*0.5 | 18.3 | 492.8 |
| HPKMCE-S-0.5-36C | 36*0.5 | 18.8 | 517.9 |
| HPKMCE-S-0.75-2C | 2*0.75 | 7.0 | 67.8 |
| HPKMCE-S-0.75-3C | 3*0.75 | 7.4 | 83.6 |
| HPKMCE-S-0.75-4C | 4*0.75 | 8.1 | 102.2 |
| HPKMCE-S-0.75-5C | 5*0.75 | 8.9 | 121.9 |
| HPKMCE-S-0.75-6C | 6*0.75 | 9.7 | 142.3 |
| HPKMCE-S-0.75-7C | 7*0.75 | 9.7 | 154.2 |
| HPKMCE-S-0.75-8C | 8*0.75 | 10.5 | 175.0 |
| HPKMCE-S-0.75-9C | 9*0.75 | 11.6 | 199.4 |
| HPKMCE-S-0.75-10C | 10*0.75 | 12.4 | 221.2 |
| HPKMCE-S-0.75-12C | 12*0.75 | 12.8 | 250.2 |
| HPKMCE-S-0.75-14C | 14*0.75 | 13.5 | 283.1 |
| HPKMCE-S-0.75-16C | 16*0.75 | 14.3 | 317.2 |
| HPKMCE-S-0.75-18C | 18*0.75 | 15.1 | 352.2 |
| HPKMCE-S-0.75-20C | 20*0.75 | 15.5 | 381.9 |
| HPKMCE-S-0.75-21C | 21*0.75 | 15.9 | 399.5 |
| HPKMCE-S-0.75-24C | 24*0.75 | 18.0 | 486.1 |
| HPKMCE-S-0.75-25C | 25*0.75 | 18.4 | 505.1 |
| HPKMCE-S-0.75-27C | 27*0.75 | 18.4 | 529.0 |
| HPKMCE-S-0.75-30C | 30*0.75 | 19.1 | 577.0 |
| HPKMCE-S-0.75-32C | 32*0.75 | 19.9 | 614.6 |
| HPKMCE-S-0.75-36C | 36*0.75 | 20.7 | 677.1 |
| HPKMCE-S-1.0-2C | 2*1.0 | 7.4 | 77.2 |
| HPKMCE-S-1.0-3C | 3*1.0 | 7.8 | 96.2 |
| HPKMCE-S-1.0-4C | 4*1.0 | 8.6 | 118.4 |
| HPKMCE-S-1.0-5C | 5*1.0 | 9.4 | 141.7 |
| HPKMCE-S-1.0-6C | 6*1.0 | 10.3 | 165.9 |
| HPKMCE-S-1.0-7C | 7*1.0 | 10.3 | 180.7 |
| HPKMCE-S-1.0-8C | 8*1.0 | 11.2 | 205.3 |
| HPKMCE-S-1.0-9C | 9*1.0 | 12.3 | 233.9 |
| HPKMCE-S-1.0-10C | 10*1.0 | 13.2 | 259.6 |
| HPKMCE-S-1.0-12C | 12*1.0 | 13.6 | 295.0 |
| HPKMCE-S-1.0-14C | 14*1.0 | 14.4 | 334.6 |
| HPKMCE-S-1.0-16C | 16*1.0 | 15.2 | 375.6 |
| HPKMCE-S-1.0-18C | 18*1.0 | 16.1 | 417.6 |
| HPKMCE-S-1.0-20C | 20*1.0 | 16.5 | 453.7 |
| HPKMCE-S-1.0-21C | 21*1.0 | 17.0 | 474.8 |
| HPKMCE-S-1.0-24C | 24*1.0 | 19.2 | 575.0 |
| HPKMCE-S-1.0-25C | 25*1.0 | 19.7 | 597.7 |
| HPKMCE-S-1.0-27C | 27*1.0 | 19.7 | 627.2 |
| HPKMCE-S-1.0-30C | 30*1.0 | 20.4 | 685.2 |
| 型號 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| HPKMCE-S-1.0-32C | 32*1.0 | 21.2 | 730.2 |
| HPKMCE-S-1.0-36C | 36*1.0 | 22.1 | 805.9 |
| HPKMCE-S-1.5-2C | 2*1.5 | 8.5 | 102.0 |
| HPKMCE-S-1.5-3C | 3*1.5 | 9.1 | 129.1 |
| HPKMCE-S-1.5-4C | 4*1.5 | 10.0 | 160.3 |
| HPKMCE-S-1.5-5C | 5*1.5 | 11.0 | 193.1 |
| HPKMCE-S-1.5-6C | 6*1.5 | 12.0 | 227.0 |
| HPKMCE-S-1.5-7C | 7*1.5 | 12.0 | 248.7 |
| HPKMCE-S-1.5-8C | 8*1.5 | 13.0 | 283.3 |
| HPKMCE-S-1.5-9C | 9*1.5 | 14.4 | 323.2 |
| HPKMCE-S-1.5-10C | 10*1.5 | 15.5 | 359.3 |
| HPKMCE-S-1.5-12C | 12*1.5 | 16.0 | 410.3 |
| HPKMCE-S-1.5-14C | 14*1.5 | 16.9 | 467.0 |
| HPKMCE-S-1.5-16C | 16*1.5 | 18.1 | 548.1 |
| HPKMCE-S-1.5-18C | 18*1.5 | 19.2 | 609.5 |
| HPKMCE-S-1.5-20C | 20*1.5 | 19.7 | 662.2 |
| HPKMCE-S-1.5-21C | 21*1.5 | 20.2 | 693.1 |
| HPKMCE-S-1.5-24C | 24*1.5 | 22.6 | 804.1 |
| HPKMCE-S-1.5-25C | 25*1.5 | 23.2 | 836.4 |
| HPKMCE-S-1.5-27C | 27*1.5 | 23.2 | 897.7 |
| HPKMCE-S-1.5-30C | 30*1.5 | 24.3 | 993.5 |
| HPKMCE-S-1.5-32C | 32*1.5 | 25.3 | 1058.8 |
| HPKMCE-S-1.5-36C | 36*1.5 | 26.3 | 1169.1 |
| HPKMCE-S-2.5-2C | 2*2.5 | 10.4 | 148.3 |
| HPKMCE-S-2.5-3C | 3*2.5 | 11.1 | 190.8 |
| HPKMCE-S-2.5-4C | 4*2.5 | 12.3 | 239.3 |
| HPKMCE-S-2.5-5C | 5*2.5 | 13.5 | 290.1 |
| HPKMCE-S-2.5-6C | 6*2.5 | 14.8 | 342.7 |
| HPKMCE-S-2.5-7C | 7*2.5 | 14.8 | 377.5 |
| HPKMCE-S-2.5-8C | 8*2.5 | 16.2 | 431.1 |
| HPKMCE-S-2.5-9C | 9*2.5 | 18.2 | 515.3 |
| HPKMCE-S-2.5-10C | 10*2.5 | 19.5 | 573.1 |
| HPKMCE-S-2.5-12C | 12*2.5 | 20.2 | 654.9 |
| HPKMCE-S-2.5-14C | 14*2.5 | 21.3 | 745.8 |
| HPKMCE-S-2.5-16C | 16*2.5 | 22.6 | 839.8 |
| HPKMCE-S-2.5-18C | 18*2.5 | 23.9 | 935.9 |
| HPKMCE-S-2.5-20C | 20*2.5 | 24.8 | 1050.8 |
| HPKMCE-S-2.5-21C | 21*2.5 | 25.4 | 1100.0 |
| HPKMCE-S-2.5-24C | 24*2.5 | 28.5 | 1276.9 |
| HPKMCE-S-2.5-25C | 25*2.5 | 29.2 | 1328.4 |
| HPKMCE-S-2.5-27C | 27*2.5 | 29.2 | 1398.0 |
| HPKMCE-S-2.5-30C | 30*2.5 | 30.3 | 1531.3 |
| HPKMCE-S-2.5-32C | 32*2.5 | 31.6 | 1633.6 |
| HPKMCE-S-2.5-36C | 36*2.5 | 32.9 | 1808.1 |
| HPKMCE-S-4.0-2C | 2*4.0 | 11.8 | 197.1 |
| HPKMCE-S-4.0-3C | 3*4.0 | 12.6 | 257.8 |
| HPKMCE-S-4.0-4C | 4*4.0 | 13.9 | 326.0 |
| HPKMCE-S-4.0-5C | 5*4.0 | 15.4 | 397.2 |
| HPKMCE-S-4.0-7C | 7*4.0 | 16.9 | 521.8 |
| HPKMCE-S-6.0-2C | 2*6.0 | 13.4 | 261.9 |
| HPKMCE-S-6.0-3C | 3*6.0 | 14.4 | 347.3 |
| HPKMCE-S-6.0-4C | 4*6.0 | 15.9 | 442.3 |
| HPKMCE-S-6.0-5C | 5*6.0 | 17.6 | 541.0 |
| HPKMCE-S-6.0-7C | 7*6.0 | 19.6 | 740.6 |
| HPKMCE-S-10.0-3C | 3*10 | 18.6 | 575.8 |
| HPKMCE-S-10.0-4C | 4*10 | 20.6 | 734.0 |
| HPKMCE-S-10.0-5C | 5*10 | 22.8 | 898.7 |
| HPKMCE-S-10.0-7C | 7*10 | 25.4 | 1222.8 |
| HPKMCE-S-16-3C | 3*16 | 20.8 | 799.9 |
| HPKMCE-S-16-4C | 4*16 | 23.1 | 1027.5 |
| HPKMCE-S-16-5C | 5*16 | 25.9 | 1295.9 |
| HPKMCE-S-16-7C | 7*16 | 28.5 | 1725.1 |
