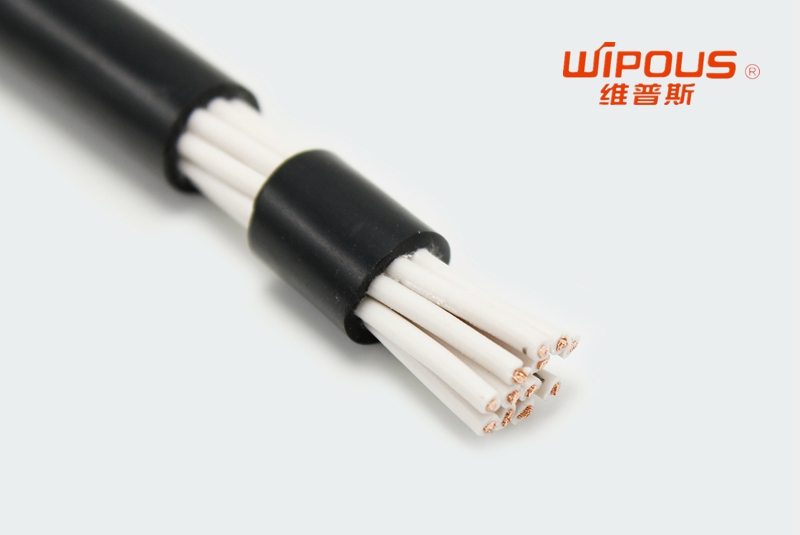

五類銅絲導體
特制混合PVC絕緣
特制混合PVC護套
產品應用：
喬浦HRJMCE 非屏蔽PVC控制電纜用于工業自動化，機電成套設備，機床等機械設備，物流傳輸系統，生產線等控制系統中電氣連接，特別適合用于工業環境中，干燥或者潮濕的室內室外固定安裝，也可用于非連續往復運動無強制牽引的移動安裝。黑色外護套具有防紫外線性能，可在室外露天安裝，但是不允許直埋。該線纜具有良好的柔軟性。護套采用耐油PVC，使線纜具有良好的耐油性能。當外部有電磁干擾時推薦使用帶屏蔽線纜喬浦HRJMCE-S系列產品。
| 型號 | 芯線根數+導體規格 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| HRJMCE-20AWG-2C | 2*20AWG | 2*0.5 | 6.7 | 60.4 |
| HRJMCE-20AWG-3C | 3*20AWG | 3*0.5 | 7.1 | 70.1 |
| HRJMCE-20AWG-4C | 4*20AWG | 4*0.5 | 7.8 | 83.8 |
| HRJMCE-20AWG-5C | 5*20AWG | 5*0.5 | 8.5 | 98.3 |
| HRJMCE-20AWG-6C | 6*20AWG | 6*0.5 | 9.3 | 113.2 |
| HRJMCE-20AWG-7C | 7*20AWG | 7*0.5 | 9.3 | 124.6 |
| HRJMCE-20AWG-8C | 8*20AWG | 8*0.5 | 10.1 | 141.5 |
| HRJMCE-20AWG-9C | 9*20AWG | 9*0.5 | 11.3 | 165.2 |
| HRJMCE-20AWG-10C | 10*20AWG | 10*0.5 | 12.3 | 190.2 |
| HRJMCE-20AWG-12C | 12*20AWG | 12*0.5 | 12.7 | 214.9 |
| HRJMCE-20AWG-14C | 14*20AWG | 14*0.5 | 13.5 | 245.1 |
| HRJMCE-20AWG-16C | 16*20AWG | 16*0.5 | 14.4 | 277.1 |
| HRJMCE-20AWG-18C | 18*20AWG | 18*0.5 | 15.3 | 310.4 |
| HRJMCE-20AWG-20C | 20*20AWG | 20*0.5 | 15.8 | 336.6 |
| HRJMCE-20AWG-21C | 21*20AWG | 21*0.5 | 16.2 | 356.2 |
| HRJMCE-20AWG-24C | 24*20AWG | 24*0.5 | 18.4 | 424.1 |
| HRJMCE-20AWG-25C | 25*20AWG | 25*0.5 | 18.9 | 444.9 |
| HRJMCE-20AWG-27C | 27*20AWG | 27*0.5 | 18.9 | 462.9 |
| HRJMCE-20AWG-30C | 30*20AWG | 30*0.5 | 19.6 | 508.2 |
| HRJMCE-20AWG-32C | 32*20AWG | 32*0.5 | 20.5 | 548.6 |
| HRJMCE-20AWG-36C | 36*20AWG | 36*0.5 | 21.4 | 608.9 |
| HRJMCE-18AWG-2C | 2*18AWG | 2*1.0 | 7.3 | 74.6 |
| HRJMCE-18AWG-3C | 3*18AWG | 3*1.0 | 7.7 | 88.1 |
| HRJMCE-18AWG-4C | 4*18AWG | 4*1.0 | 8.4 | 106.2 |
| HRJMCE-18AWG-5C | 5*18AWG | 5*1.0 | 9.2 | 125.4 |
| HRJMCE-18AWG-6C | 6*18AWG | 6*1.0 | 10.2 | 147.5 |
| HRJMCE-18AWG-7C | 7*18AWG | 7*1.0 | 10.2 | 163.1 |
| HRJMCE-18AWG-8C | 8*18AWG | 8*1.0 | 11.2 | 187.4 |
| HRJMCE-18AWG-9C | 9*18AWG | 9*1.0 | 12.6 | 218.2 |
| HRJMCE-18AWG-10C | 10*18AWG | 10*1.0 | 13.6 | 250.6 |
| HRJMCE-18AWG-12C | 12*18AWG | 12*1.0 | 14.1 | 284.4 |
| HRJMCE-18AWG-14C | 14*18AWG | 14*1.0 | 15.0 | 324.8 |
| HRJMCE-18AWG-16C | 16*18AWG | 16*1.0 | 16.0 | 367.6 |
| HRJMCE-18AWG-18C | 18*18AWG | 18*1.0 | 17.0 | 411.8 |
| HRJMCE-18AWG-20C | 20*18AWG | 20*1.0 | 17.5 | 447.3 |
| HRJMCE-18AWG-21C | 21*18AWG | 21*1.0 | 18.0 | 473.1 |
| HRJMCE-18AWG-24C | 24*18AWG | 24*1.0 | 20.4 | 561.7 |
| HRJMCE-18AWG-25C | 25*18AWG | 25*1.0 | 20.9 | 588.9 |
| HRJMCE-18AWG-27C | 27*18AWG | 27*1.0 | 20.9 | 614.4 |
| HRJMCE-18AWG-30C | 30*18AWG | 30*1.0 | 21.8 | 675.1 |
| HRJMCE-18AWG-32C | 32*18AWG | 32*1.0 | 22.8 | 728.2 |
| HRJMCE-18AWG-36C | 36*18AWG | 36*1.0 | 23.8 | 808.9 |
| HRJMCE-16AWG-2C | 2*16AWG | 2*1.5 | 7.9 | 92.3 |
| HRJMCE-16AWG-3C | 3*16AWG | 3*1.5 | 8.3 | 110.7 |
| HRJMCE-16AWG-4C | 4*16AWG | 4*1.5 | 9.2 | 134.6 |
| HRJMCE-16AWG-5C | 5*16AWG | 5*1.5 | 10.1 | 162.0 |
| HRJMCE-16AWG-6C | 6*16AWG | 6*1.5 | 11.3 | 193.1 |
| HRJMCE-16AWG-7C | 7*16AWG | 7*1.5 | 11.3 | 214.3 |
| HRJMCE-16AWG-8C | 8*16AWG | 8*1.5 | 12.4 | 246.1 |
| HRJMCE-16AWG-9C | 9*16AWG | 9*1.5 | 13.9 | 285.9 |
| HRJMCE-16AWG-10C | 10*16AWG | 10*1.5 | 15.0 | 327.7 |
| HRJMCE-16AWG-12C | 12*16AWG | 12*1.5 | 15.6 | 373.2 |
| HRJMCE-16AWG-14C | 14*16AWG | 14*1.5 | 16.6 | 426.9 |
| HRJMCE-16AWG-16C | 16*16AWG | 16*1.5 | 17.7 | 483.4 |
| HRJMCE-16AWG-18C | 18*16AWG | 18*1.5 | 18.8 | 541.8 |
| HRJMCE-16AWG-19C | 19*16AWG | 19*1.5 | 19.2 | 568.2 |
| HRJMCE-16AWG-20C | 20*16AWG | 20*1.5 | 19.4 | 589.4 |
| HRJMCE-16AWG-21C | 21*16AWG | 21*1.5 | 19.9 | 623.1 |
| HRJMCE-16AWG-24C | 24*16AWG | 24*1.5 | 22.5 | 737.8 |
| HRJMCE-16AWG-25C | 25*16AWG | 25*1.5 | 23.1 | 773.1 |
| HRJMCE-16AWG-27C | 27*16AWG | 27*1.5 | 23.1 | 808.6 |
| HRJMCE-16AWG-30C | 30*16AWG | 30*1.5 | 24.1 | 889.1 |
| HRJMCE-16AWG-32C | 32*16AWG | 32*1.5 | 25.2 | 958.3 |
| 型號 | 芯線根數+導體規格 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| HRJMCE-16AWG-36C | 36*16AWG | 36*1.5 | 26.3 | 1065.5 |
| HRJMCE-14AWG-2C | 2*14AWG | 2*2.5 | 8.6 | 119.0 |
| HRJMCE-14AWG-3C | 3*14AWG | 3*2.5 | 9.2 | 145.0 |
| HRJMCE-14AWG-4C | 4*14AWG | 4*2.5 | 10.2 | 180.4 |
| HRJMCE-14AWG-5C | 5*14AWG | 5*2.5 | 11.4 | 220.6 |
| HRJMCE-14AWG-6C | 6*14AWG | 6*2.5 | 12.7 | 262.9 |
| HRJMCE-14AWG-7C | 7*14AWG | 7*2.5 | 12.7 | 293.0 |
| HRJMCE-14AWG-8C | 8*14AWG | 8*2.5 | 14.0 | 336.3 |
| HRJMCE-14AWG-9C | 9*14AWG | 9*2.5 | 15.6 | 389.8 |
| HRJMCE-14AWG-10C | 10*14AWG | 10*2.5 | 16.9 | 445.8 |
| HRJMCE-14AWG-12C | 12*14AWG | 12*2.5 | 17.6 | 509.5 |
| HRJMCE-14AWG-14C | 14*14AWG | 14*2.5 | 18.7 | 583.7 |
| HRJMCE-14AWG-16C | 16*14AWG | 16*2.5 | 19.9 | 661.4 |
| HRJMCE-14AWG-18C | 18*14AWG | 18*2.5 | 21.1 | 741.4 |
| HRJMCE-14AWG-20C | 20*14AWG | 20*2.5 | 21.8 | 808.0 |
| HRJMCE-14AWG-21C | 21*14AWG | 21*2.5 | 22.4 | 853.7 |
| HRJMCE-14AWG-24C | 24*14AWG | 24*2.5 | 25.4 | 1008.1 |
| HRJMCE-14AWG-25C | 25*14AWG | 25*2.5 | 26.0 | 1055.9 |
| HRJMCE-14AWG-27C | 27*14AWG | 27*2.5 | 26.0 | 1107.0 |
| HRJMCE-14AWG-30C | 30*14AWG | 30*2.5 | 27.1 | 1218.2 |
| HRJMCE-14AWG-32C | 32*14AWG | 32*2.5 | 28.3 | 1312.0 |
| HRJMCE-14AWG-36C | 36*14AWG | 36*2.5 | 29.6 | 1460.1 |
| HRJMCE-12AWG-2C | 2*12AWG | 2*4.0 | 9.7 | 159.1 |
| HRJMCE-12AWG-3C | 3*12AWG | 3*4.0 | 10.4 | 200.2 |
| HRJMCE-12AWG-4C | 4*12AWG | 4*4.0 | 11.7 | 253.1 |
| HRJMCE-12AWG-5C | 5*12AWG | 5*4.0 | 13.0 | 310.0 |
| HRJMCE-12AWG-7C | 7*12AWG | 7*4.0 | 14.5 | 413.4 |
| HRJMCE-10AWG-2C | 2*10AWG | 2*6.0 | 11.1 | 222.6 |
| HRJMCE-10AWG-3C | 3*10AWG | 3*6.0 | 12.0 | 283.1 |
| HRJMCE-10AWG-4C | 4*10AWG | 4*6.0 | 13.4 | 359.1 |
| HRJMCE-10AWG-5C | 5*10AWG | 5*6.0 | 15.0 | 440.4 |
| HRJMCE-10AWG-7C | 7*10AWG | 7*6.0 | 16.7 | 589.2 |
| HRJMCE-8AWG-3C | 3*8AWG | 3*10 | 16.0 | 484.4 |
| HRJMCE-8AWG-4C | 4*8AWG | 4*10 | 17.9 | 613.2 |
| HRJMCE-8AWG-5C | 5*8AWG | 5*10 | 20.0 | 751.4 |
| HRJMCE-8AWG-7C | 7*8AWG | 7*10 | 22.3 | 1003.1 |
| HRJMCE-6AWG-3C | 3*6AWG | 3*16 | 20.5 | 791.3 |
| HRJMCE-6AWG-4C | 4*6AWG | 4*16 | 23.0 | 1001.1 |
| HRJMCE-6AWG-5C | 5*6AWG | 5*16 | 25.8 | 1226.4 |
| HRJMCE-6AWG-7C | 7*6AWG | 7*16 | 28.6 | 1462.7 |
| HRJMCE-4AWG-3C | 3*4AWG | 3*25 | 25.5 | 1203.7 |
| HRJMCE-4AWG-4C | 4*4AWG | 4*25 | 28.5 | 1522.2 |
| HRJMCE-4AWG-5C | 5*4AWG | 5*25 | 31.9 | 1864.3 |
| HRJMCE-4AWG-7C | 7*4AWG | 7*25 | 35.5 | 2486.1 |
| HRJMCE-2AWG-3C | 3*2AWG | 3*35 | 30.6 | 1860.4 |
| HRJMCE-2AWG-4C | 4*2AWG | 4*35 | 34.3 | 2360.8 |
| HRJMCE-2AWG-5C | 5*2AWG | 5*35 | 38.4 | 2895.3 |
| HRJMCE-2AWG-7C | 7*2AWG | 7*35 | 42.7 | 3874.2 |
| HRJMCE-1/0AWG-3C | 3*1/0AWG | 3*50 | 38.2 | 2788.2 |
| HRJMCE-1/0AWG-4C | 4*1/0AWG | 4*50 | 42.8 | 3531.7 |
| HRJMCE-1/0AWG-5C | 5*1/0AWG | 5*50 | 47.8 | 4328.2 |
| HRJMCE-1/0AWG-7C | 7*1/0AWG | 7*50 | 53.2 | 5781.2 |
| HRJMCE-2/0AWG-3C | 3*2/0AWG | 3*70 | 41.8 | 3428.6 |
| HRJMCE-2/0AWG-4C | 4*2/0AWG | 4*70 | 46.8 | 4348.6 |
| HRJMCE-2/0AWG-5C | 5*2/0AWG | 5*70 | 52.4 | 5332.2 |
| HRJMCE-3/0AWG-3C | 3*3/0AWG | 3*95 | 46.2 | 4305.9 |
| HRJMCE-3/0AWG-4C | 4*3/0AWG | 4*95 | 51.7 | 5469.1 |
| HRJMCE-3/0AWG-5C | 5*3/0AWG | 5*95 | 57.9 | 6709.9 |
| HRJMCE-4/0AWG-3C | 3*4/0AWG | 3*120 | 51.1 | 5413.6 |
| HRJMCE-4/0AWG-4C | 4*4/0AWG | 4*120 | 57.3 | 6884.9 |
| HRJMCE-250MCM-3C | 3*250MCM | 3*150 | 55.6 | 6118.8 |
| HRJMCE-250MCM-4C | 4*250MCM | 4*150 | 62.4 | 7763.1 |
| HRJMCE-350MCM-4C | 4*350MCM | 4*185 | 68.7 | 10215.4 |
