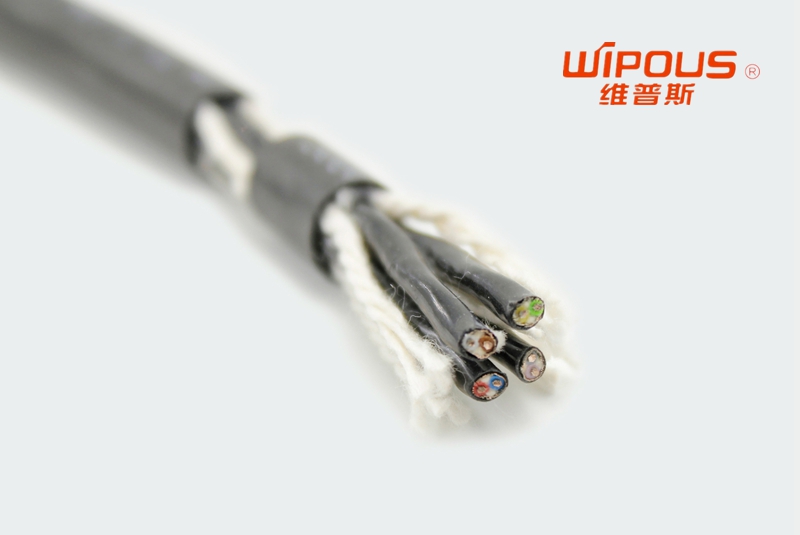

五類銅絲導體
環保PVC絕緣
進口柔性PUR護套
棉線填充
產品應用：
喬浦T-HPMC柔性PUR伺服機非屏蔽電纜具有UL&cUL及CE認證可通用于北美和歐洲市場。用于西門子等各大知名品牌伺服機和驅動馬達。產品具有較高的柔韌性，PUR外護套使此款電纜適用于極其苛刻的工業環境和有腐蝕性冷卻劑和潤滑油場合，具有極好的耐油性，抗磨損性能，抗微生物，抗水解，抗化學腐蝕，抗紫外線，保護電纜不受機械應力的損害。壽命比一般電纜線更久。可以室內或者室外安裝。當外部有電磁干擾時，推薦使用帶屏蔽線纜喬浦T-HPMCS系列產品。
| 型號 | 芯線根數+導體規格 | 芯線根數+導體截面積 | 電纜近似外徑 (mm Max.) |
電纜近似重量 (kg / km) |
| T-HPMC | (3+T)*18AWG | (3+T)*1.0 | 10.4 | 176.0 |
| T-HPMC | (3+T)*16AWG | (3+T)*1.5 | 11.2 | 213.5 |
| T-HPMC | (3+T)*14AWG | (3+T)*2.5 | 12.1 | 259.9 |
| T-HPMC | (3+T)*12AWG | (3+T)*4 | 13.3 | 340.4 |
| T-HPMC | (3+T)*10AWG | (3+T)*6 | 16.3 | 523.1 |
| T-HPMC | (3+T)*8AWG | (3+T)*10 | 19.7 | 787.0 |
| T-HPMC | (3+T)*6AWG | (3+T)*16 | 24.3 | 1151.6 |
| T-HPMC | (3+T)*4AWG | (3+T)*25 | 27.8 | 1569.7 |
| T-HPMC | (3+T)*2AWG | (3+T)*35 | 34.7 | 2533.4 |
| T-HPMC | (3+T)*1/0AWG | (3+T)*50 | 41.0 | 3608.2 |
| T-HPMC | (3+T)*2/0AWG | (3+T)*70 | 44.7 | 4402.0 |
| T-HPMC | (3+T)*3/0AWG | (3+T)*95 | 51.2 | 5799.5 |
| T-HPMC | (3+T)*18AWG+2*20AWG | (3+T)*1.0+2*0.75 | 10.5 | 169.5 |
| T-HPMC | (3+T)*16AWG+2*18AWG | (3+T)*1.5+2*1.0 | 11.2 | 207.5 |
| T-HPMC | (3+T)*14AWG+2*18AWG | (3+T)*2.5+2*1.0 | 12.2 | 256.4 |
| T-HPMC | (3+T)*12AWG+2*16AWG | (3+T)*4+2*1.5 | 13.4 | 340.4 |
| T-HPMC | (3+T)*10AWG+2*16AWG | (3+T)*6+2*1.5 | 16.4 | 480.1 |
| T-HPMC | (3+T)*8AWG+2*16AWG | (3+T)*10+2*1.5 | 19.8 | 714.3 |
| T-HPMC | (3+T)*6AWG+2*16AWG | (3+T)*16+2*1.5 | 24.4 | 1089.4 |
| T-HPMC | (3+T)*4AWG+2*16AWG | (3+T)*25+2*1.5 | 27.9 | 1568.5 |
| T-HPMC | (3+T)*2AWG+2*16AWG | (3+T)*35+2*1.5 | 34.9 | 2903.7 |
| T-HPMC | (3+T)*1/0AWG+2*16AWG | (3+T)*50+2*1.5 | 41.2 | 4108.8 |
| T-HPMC | (3+T)*18AWG+2*2*20AWG | (3+T)*1.0+2*2*0.75 | 11.2 | 182.3 |
| T-HPMC | (3+T)*16AWG+2*2*18AWG | (3+T)*1.5+2*2*1.0 | 12.1 | 229.9 |
| T-HPMC | (3+T)*14AWG+2*2*18AWG | (3+T)*2.5+2*2*1.0 | 13.1 | 280.6 |
| T-HPMC | (3+T)*12AWG+2*2*16AWG | (3+T)*4+2*2*1.5 | 14.5 | 373.2 |
| T-HPMC | (3+T)*10AWG+2*2*16AWG | (3+T)*6+2*2*1.5 | 17.8 | 515.8 |
| T-HPMC | (3+T)*8AWG+2*2*16AWG | (3+T)*10+2*2*1.5 | 21.6 | 756.7 |
| T-HPMC | (3+T)*6AWG+2*2*16AWG | (3+T)*16+2*2*1.5 | 26.7 | 1169.9 |
| T-HPMC | (3+T)*4AWG+2*2*16AWG | (3+T)*25+2*2*1.5 | 30.9 | 1913.4 |
| T-HPMC | (3+T)*2AWG+2*2*16AWG | (3+T)*35+2*2*1.5 | 38.5 | 2965.1 |
| T-HPMC | (3+T)*1/0AWG+2*2*16AWG | (3+T)*50+2*2*1.5 | 45.6 | 4033.3 |
